230 Yellow Screen Mesh 45 Micron Thread

230 Yellow Screen Mesh

ADD TO CART: $32.50

Quantity in Stock:398

Product Code: M-7020

230 Dyed Mesh:

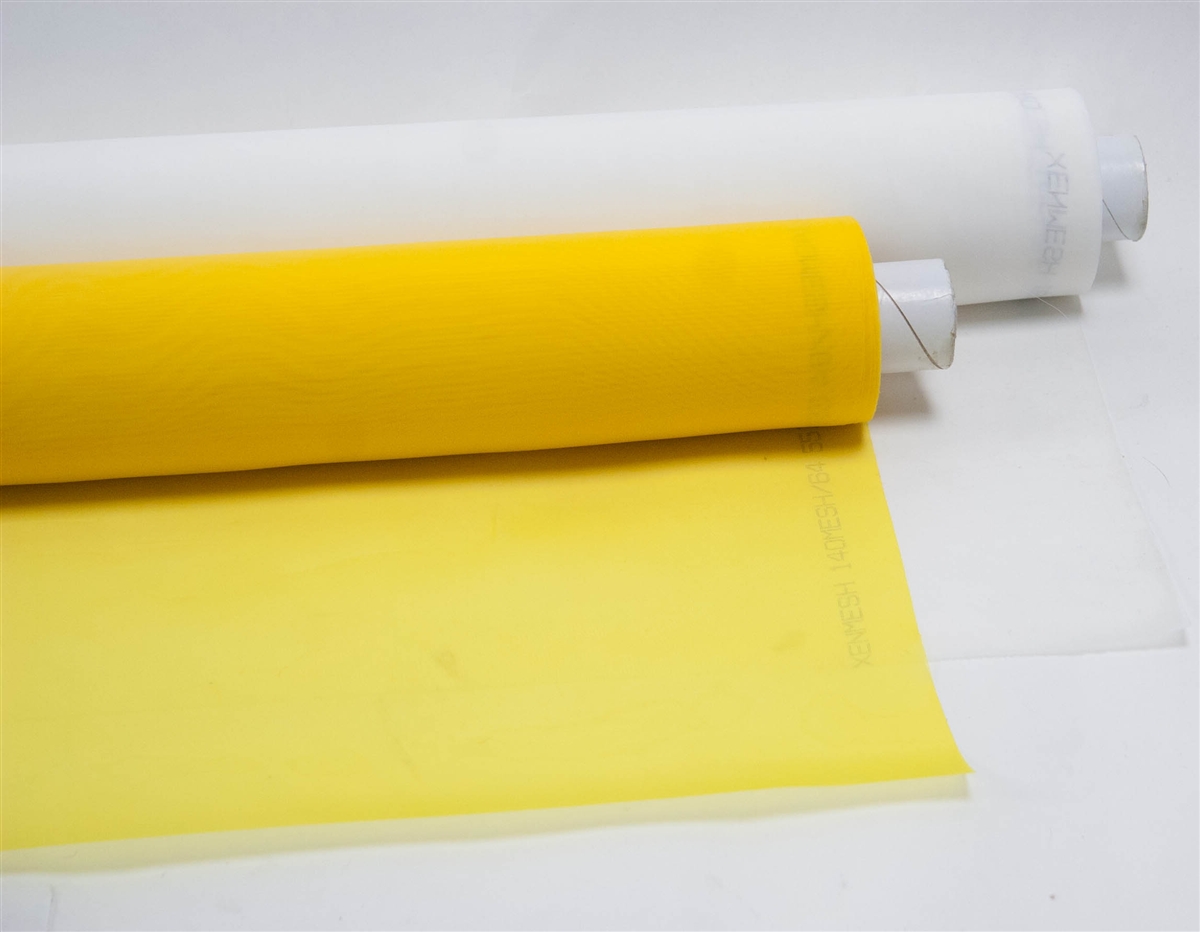

230 Yellow Screen Mesh 45 Micron Thread

230Yellow Screen Mesh has a 45 Micron count and is a high modulus (with high elasticity) polyester monofilament mesh. 230 count is considered as a mid-range mesh count. 230 mesh may be stretched to the maximum newtons, up to 27n/cm2.

230 Yellow Screen Mesh is great for fine detailed prints and should be used for thinner layers of ink.
The yellow color creates a sharper image when burning by preventing the light from reflecting through the threads.

Specifications for 230 Yellow Screen Mesh

  • 62 inches wide
  • 230 mesh count dyed
  • (45 microns).
  • 71 mesh opening
  • 36 open surface
NOTE: This mesh requires proper degreasing and mesh preparation and did not have any surface treatment.
